What is the primary functional difference between a Capstan Winch and a conventional Mooring Winch?

While both handle marine line pulling, their mechanical design and line storage methods differ completely: No Line Storage on Drum: A capstan winch features a smooth, flared revolving drum (warping head). Synthetic or fiber ropes are manually wrapped 3 to 5 turns around the rotating drum without spooling onto it. Multi-Directional Pulling: Because the rope feeds off the drum freely into the vessel's rope locker or deck, a single capstan can pull lines coming from any 360-degree direction, making it exceptionally versatile in tight mooring spaces. Ultra-Compact Deck Footprint: Takes up significantly less deck area than horizontal drum winches, ideal for crowded foredecks or stern corners.

Should I select a Vertical Capstan with under-deck drive or an Above-Deck self-contained unit?

The choice depends on available hull headroom and deck space constraints: Vertical Under-Deck Capstan: The electric or hydraulic motor and gearbox are mounted beneath the weather deck inside the hull/machinery space. This protects the drive components from saltwater corrosion, lowers the deck profile, and frees up clear working space. Above-Deck Self-Contained Capstan: The motor and gear reducer are fully integrated into a watertight housing above deck. Best suited for vessels with limited headroom below deck or retrofit installations requiring quick plug-and-play setup.

How does a Capstan Winch generate immense pulling force using simple friction principles?

Capstans operate based on the classic capstan friction equation:Friction Amplification: A modest manual hold-back pull applied by the deckhand on the loose end of the rope multiplies exponentially as it wraps around the high-friction warping head, generating tons of pull on the load side.Ergonomic Warping Head Profile: The drum's parabolic waist profile naturally forces rope turns toward the center, preventing overlapping or jams during heavy line hauling.

What crucial safety mechanisms protect deck personnel during capstan operations?

High-speed line handling carries inherent operational risks, requiring active safety integration: Hands-Free IP67 Foot Switches: Operated via heavy-duty, anti-slip foot switches, enabling the deckhand to instantly stop the capstan simply by lifting their foot. Reversible Speed & Dynamic Braking: Features variable speed or dual-speed VFD control with automatic fail-safe electromagnetic/hydraulic brakes to prevent line kickback if power drops. Integrated Snort Ring & Line Guides: Keeps synthetic ropes properly seated on the warping head to eliminate sudden rope slippage under peak surge loads.

Capstan winch

Naval Ships, Coast Guard & Government Patrol Vessels

Offshore Engineering Vessels & Platform Supply Vessels (PSV)

Authentication mark:

Capacity:3 – 300 kN (0.3 – 30 tons)

Lifting Height:(customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

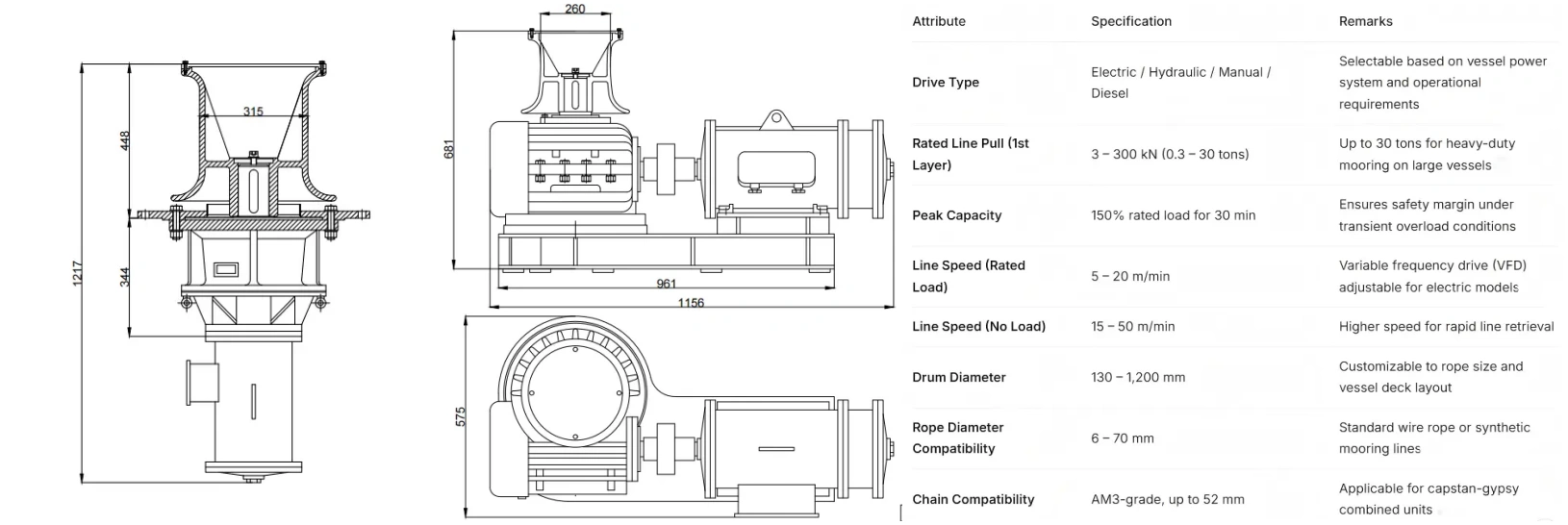

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

The Marine Capstan Winch is a vertical drum deck machinery solution designed for anchoring, mooring, towing, and line handling aboard ships, offshore platforms, and port facilities. Unlike drum winches that store rope on the drum, the capstan uses a friction-based principle where the rope is wrapped around the rotating vertical drum head but not accumulated, enabling continuous operation with unlimited rope length. Driven by electric, hydraulic, pneumatic, or diesel power systems, capstan winches provide precise and safe line control in demanding marine environments. The compact vertical design minimizes deck footprint and can be installed vertically or horizontally. Key components include the capstan head (cast steel), gearbox (planetary or helical), brake system (wet-type multi-plate or band brake), and integrated overload protection.

TECHNICAL DATA

APPLICATION

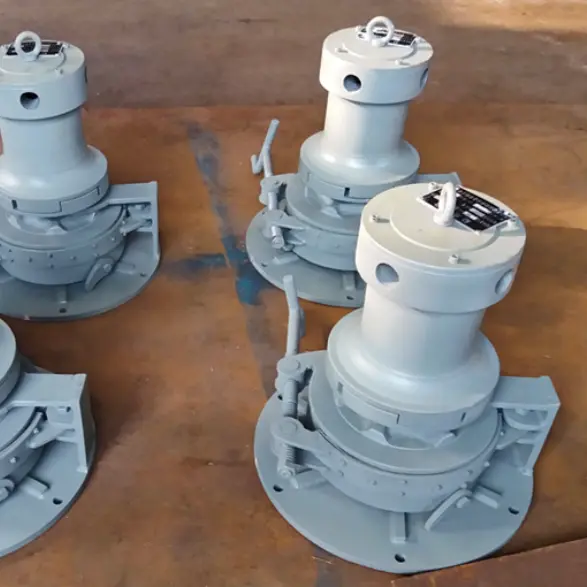

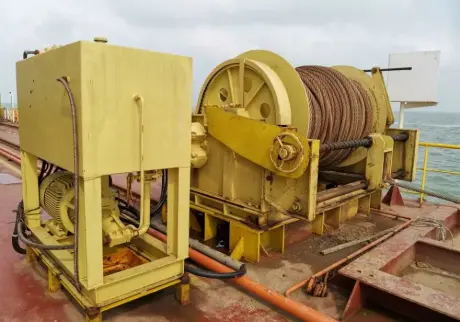

Merchant Ships

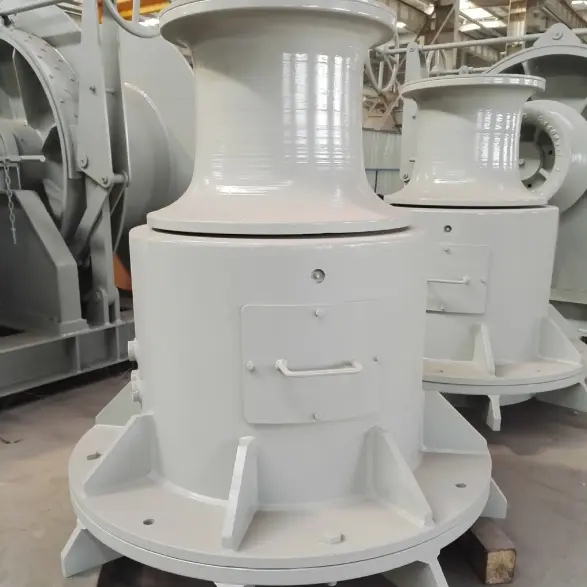

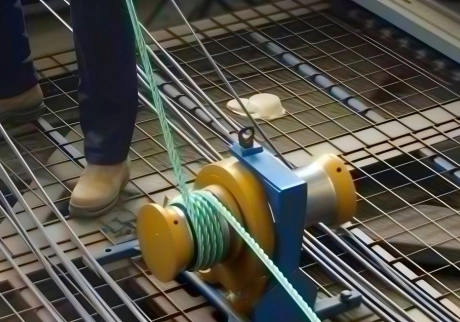

Naval Ships, Coast Guard & Government Patrol Vessels

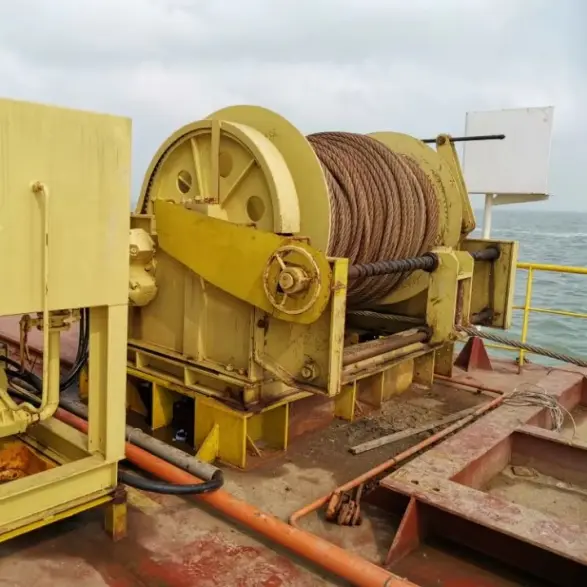

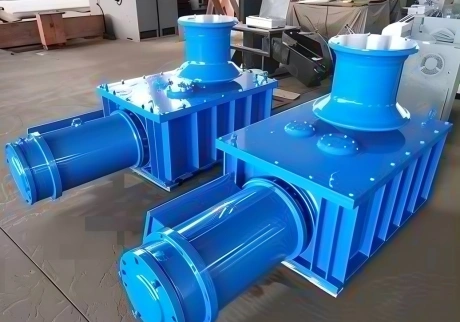

Offshore Engineering Vessels & Platform Supply Vessels (PSV)

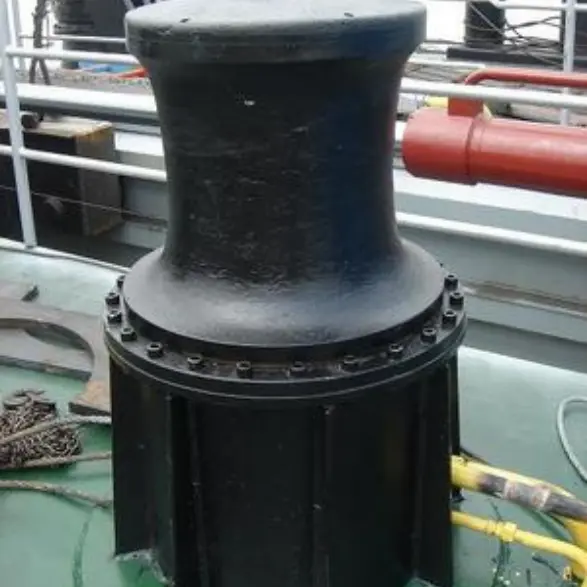

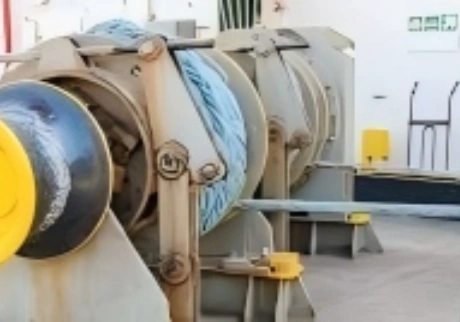

Fishing Vessels & Aquaculture Workboats

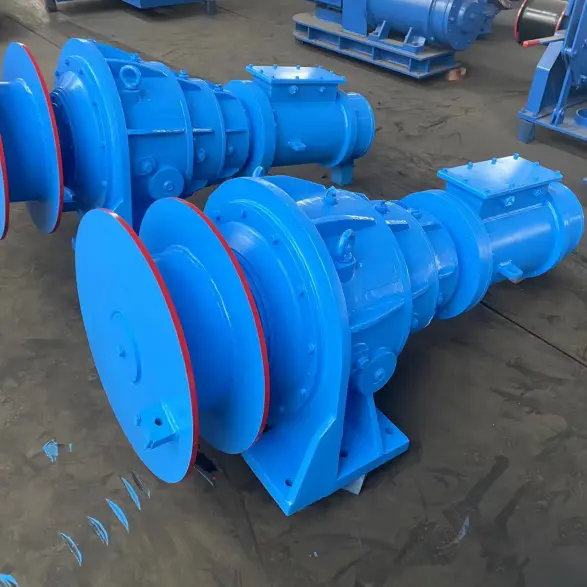

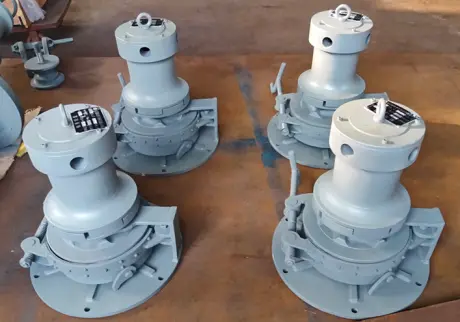

Yachts & Pleasure Crafts

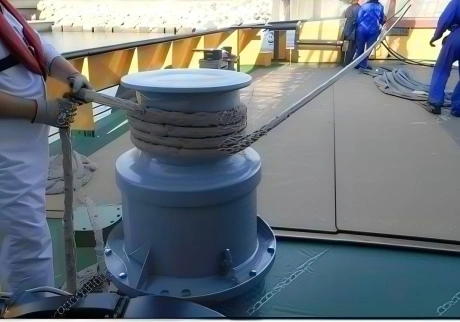

Offshore Platforms & FPSOs

FEATURES

Line Pulling: A rope or cable is wound around the warping head; its rotation creates the pulling force needed for hauling, lifting, or positioning loads.

Mooring: Secures vessels alongside docks, buoys, or platforms by tensioning mooring lines, and can be fitted with automatic tensioning to compensate for tidal changes.

Anchoring: Hauls in or pays out the anchor chain via an anchor capstan (windlass), allowing the vessel to anchor securely.

Towing: Provides sustained high pulling force for tugboats, offshore support vessels, and salvage operations.

Warping: Assists in moving the vessel alongside a quay by pulling on mooring lines with the warping head, enabling precise docking maneuvers.
