What is a Boat Lift Hoist Crane?

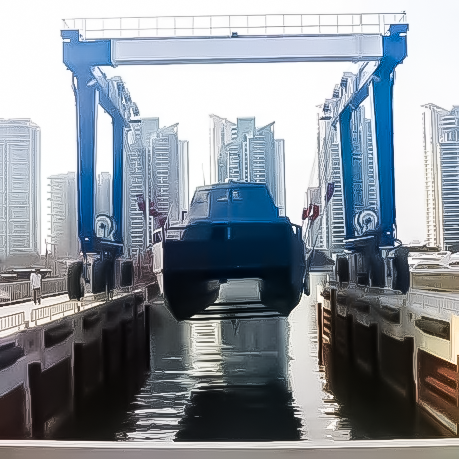

A Boat Lift Hoist Crane, often referred to as a mobile boat hoist or yacht handling crane, is a specialized piece of equipment designed for the safe and efficient transfer of boats and yachts between land and water. It is a tire-mounted, gantry-style crane that operates by straddling a dock or lifting pool. Utilizing a system of soft, adjustable slings, it gently lifts a vessel from beneath its hull, enabling operations such as launching, retrieval, storage, and transportation for maintenance. With lifting capacities ranging widely from smaller recreational boats to very large yachts, this mobile solution has become a fundamental tool in modern marina management, boatyards.

Structural Composition

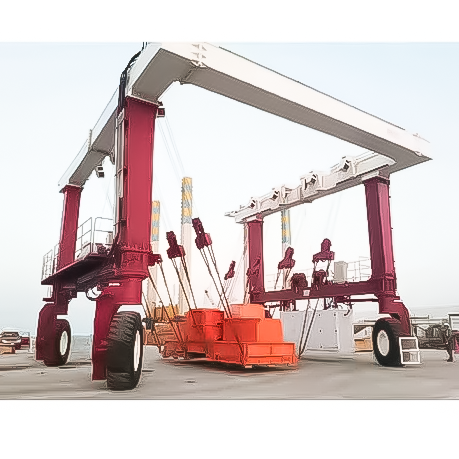

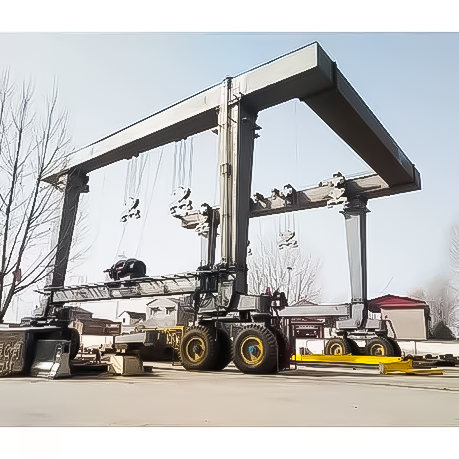

The typical design incorporates a robust steel gantry frame capable of moving on rubber tires. Its key structural components include:

Mobile Gantry Frame: The main supporting structure, often described as having a "Π" shape profile to accommodate various yacht superstructures like tall masts.

Hinged Beams: The main and end beams are connected with hinges. This design allows the structure to adjust and distribute weight evenly, accommodating uneven ground surfaces without introducing excessive stress.

Lifting System: Consists of multiple independently controlled hoisting units, each equipped with strong, non-marking lifting belts. These belts cradle the hull softly.

Power & Drive System: Commonly employs a diesel engine combined with a full hydraulic drive system, providing steady power for both mobility and lifting functions.

Steering Mechanism: Features a multi-mode steering system, enabling the crane to move straight, crab sideways, turn at angles (e.g., 45°), and rotate on the spot for precise positioning.

Control System: Integrates a Programmable Logic Controller (PLC) and frequency adjustment technology for smooth operation. It is typically operated via a wireless remote control for safety and convenience.

Core Advantages and Features

This equipment stands out due to several integrated features that address the specific needs of boat handling:

Enhanced Safety and Hull Protection: Constructed with high-strength materials and equipped with safety components. The use of soft, supportive slings prevents hull damage during lifting, offering a secure cradle instead of a gripping or squeezing action.

Superior Maneuverability and Control: The multiple steering modes offer exceptional flexibility in tight spaces, allowing for accurate placement of boats both in the water and on land.

Adaptability to Terrain: Designed to operate on various surfaces like concrete, gravel, and rough ground, with the ability to traverse mild slopes. The hinged beam structure is key to this adaptability.

Wide Range and Synchronized Lifting: Available in models from 10 to over 1000 tons capacity. Multiple, independently adjustable lifting points work in synchronization to keep the vessel perfectly balanced and level during the entire process.

Intelligent and User-Friendly Operation: The PLC-based control system ensures precise and smooth movements. Wireless remote control allows the operator to maintain a safe, clear view of the operation.

Operational Efficiency and Reliability: The combination of diesel hydraulic power offers consistent performance. Thoughtful design leads to relatively low daily operating costs and straightforward maintenance requirements.

Primary Application Scenarios

Boat Lift Hoist Cranes are versatile and find use in numerous environments:

Yacht Clubs and Marinas: For daily operations including seasonal launching/retrieval, dock reorganization, and creating efficient, dense storage layouts on land.

Boat Maintenance and Repair Centers: Essential for lifting vessels out of the water for hull inspections, cleaning, painting, and mechanical servicing.

Shipyards and Boat Manufacturers: Used for the final launching of new vessels and for handling boats during the construction and outfitting processes.

Naval Bases and Ports: Employed for maintaining and handling patrol boats, service vessels, and other small craft, benefiting from the equipment's robust build and precise control.

Waterfront Recreation Facilities: Helps manage fleets of leisure boats, pedal boats, or speedboats in water parks and sports training centers.

Storage Facilities and Boat Shows: Maximizes land storage space and is instrumental in positioning yachts for display at exhibitions.

How to Choose the Right Boat Hoist Crane for Your Facility?

Selecting the appropriate crane involves a careful assessment of your specific needs. Key parameters to consider include the maximum weight and dimensions of the vessels you handle, which determine the required lifting capacity and span. The available space in your yard dictates the necessary maneuverability features like steering modes. The lifting height must be sufficient for your storage racks or transport trailers. Furthermore, the ground conditions of your facility are critical; ensure the crane's design, such as its hinged beams and tire specification, is suitable for your surface terrain.
