Electric Single Beam Overhead Crane

Authentication mark:

Capacity:1 Ton – 20 Ton (customizable)

Lifting Height:6m-30m (customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

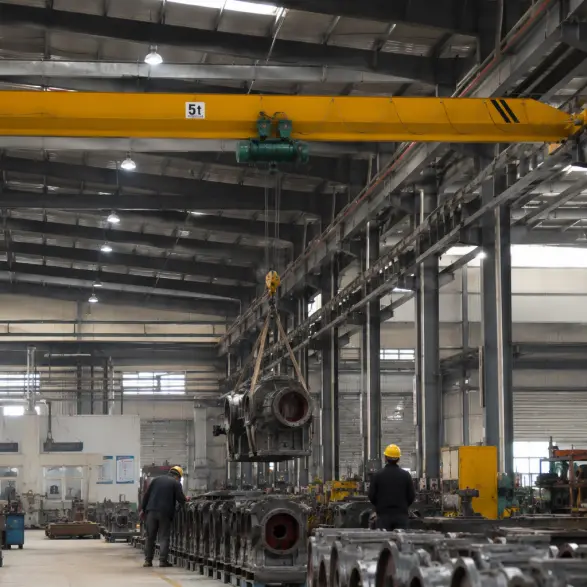

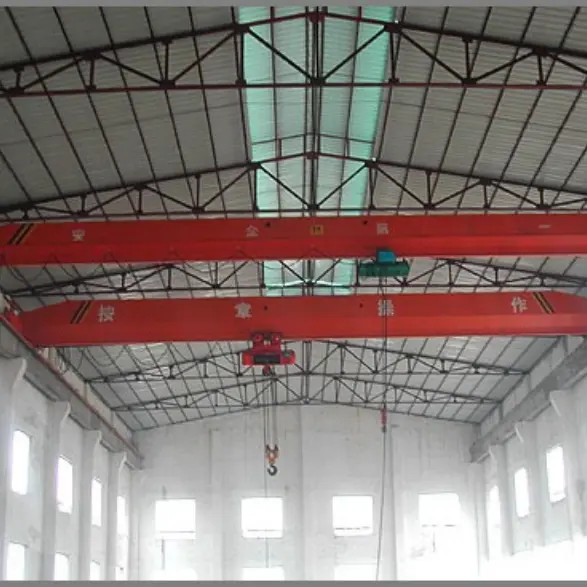

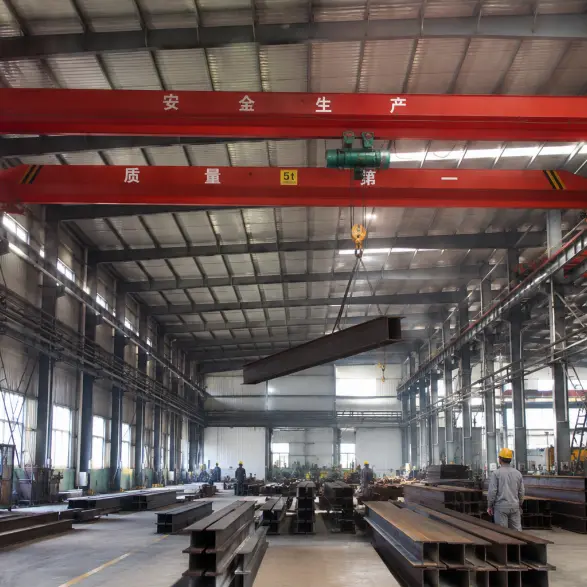

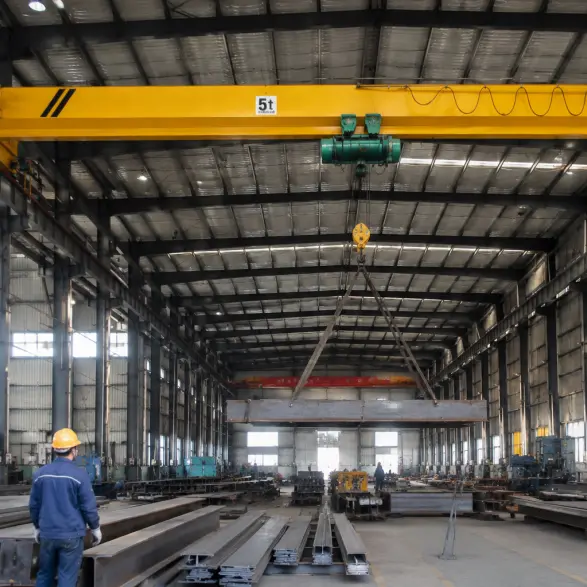

The LD Electric Single Beam Overhead Crane is a cost-effective and widely used lifting solution designed for light to medium-duty material handling applications. Equipped with a CD1 or MD1 electric wire rope hoist, the crane offers reliable lifting performance, smooth operation, and low maintenance requirements.\r\n\r\nThe crane adopts a compact single-girder structure, making it ideal for workshops, warehouses, production lines, and storage facilities where efficient use of space is essential. The top-running design provides better lifting height utilization while reducing installation costs.\r\n\r\nAvailable in capacities from 1 ton to 20 tons and spans up to 28.5 meters, the LD single girder overhead crane can be customized to meet various industrial lifting requirements.

TECHNICAL DATA

Parameter	Specification
Crane Type	LD/LDA Electric Single Beam Overhead Crane
Lifting Capacity	1T – 20T (customizable)
Span	7.5m – 28.5m (customizable)
Lifting Height	6m, 9m, 12m, 18m, 24m, 30m (customizable)
Working Duty	A3 (customizable)
Lifting Speed	3.5m/min – 8m/min
Trolley Speed	20m/min
Crane Travel Speed	20m/min / 30m/min
Power Supply	(customizable)
Control Method	Pendant / Wireless Remote / Cabin
Hoist Type	CD1 / MD1
Wheel Diameter	Φ270 / Φ370
Rail Width	37~70mm

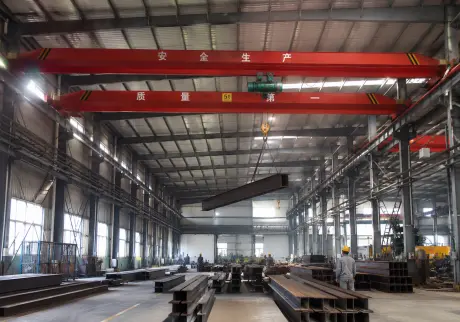

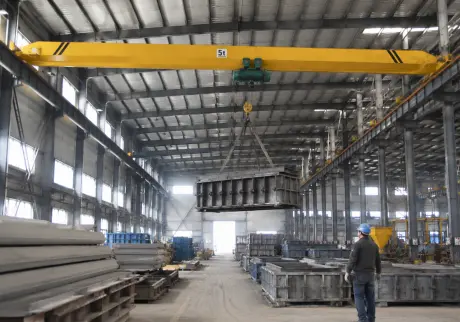

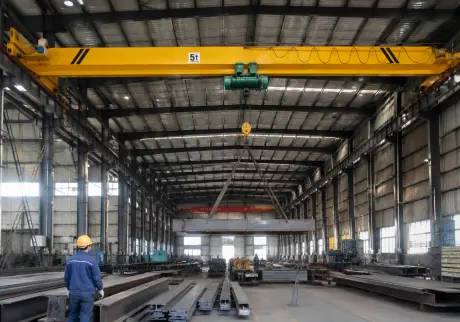

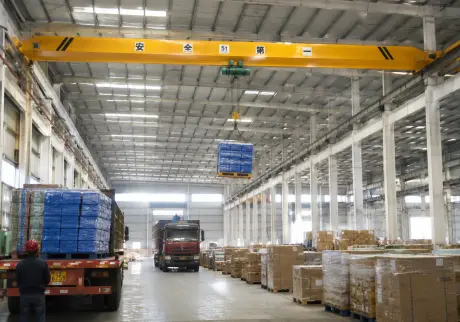

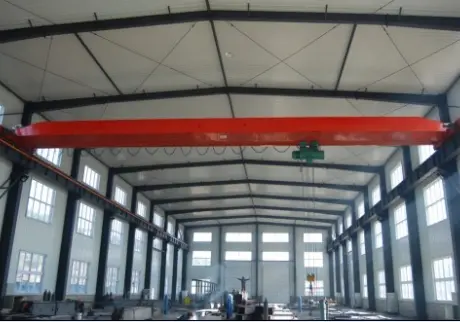

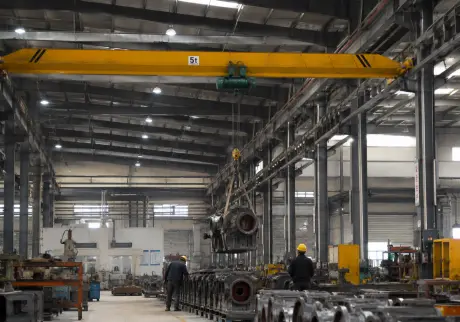

APPLICATION

Warehouses & Logistics Centers

Building Material Plants

Steel Fabrication Plants

Machinery Production Facilities

Manufacturing Workshops

General Industrial Storage Yards

FEATURES

Compact Single Girder Design Optimizes workshop space and reduces building load requirements.

Multiple Control Options Pendant Control Wireless Remote Control Cabin Control (Open Type) Cabin Control (Closed Type)

Reliable Electric Hoist Compatible with: CD1 Electric Wire Rope Hoist MD1 Electric Wire Rope Hoist

Enhanced Safety Protection Includes: Overload Protection Device Polyurethane Buffer Traveling Limit Switch Hoisting Limit Switch Emergency Stop System Voltage Loss Protection Current Overload Protection Phase Protection System
