What core operational tools are integrated into a Pot Tending Machine (PTM) Electrolytic Aluminum Multi-Function Crane?

Designed as the operational lifeline for aluminum reduction cell lines, a single PTM multi-function crane integrates five primary specialized tools onto its heavy-duty multi-purpose trolley: Pneumatic Crust Breaker: Heavy-duty pneumatic impact chisel used to break the hardened electrolyte crust over the reduction bath. Alumina Feeding Chute: Telescopic chute system that precise-dispenses alumina and fluoride salts into the open bath. Anode Changing Assembly: High-torque hydraulic anode clamp and jack device for loosening, lifting spent anode butts, and installing new carbon anodes. Molten Aluminum Tapping Mechanism: Hoisting system for holding the vacuum ladle, siphoning molten aluminum at 900°C+ with load-cell weighing. Busbar Lifting Tool (Optional): Auxiliary hoist framework dedicated to raising the anode busbar frame as the electrolysis process progresses.

How does the crane protect against severe DC high-magnetic field interference ($>300\text{--}600\text{ kA}$) and electrical short circuits?

Aluminum reduction cells operate under massive direct current (DC), creating magnetic flux that can disrupt standard electronics and cause deadly short circuits:Multi-Tier Insulation Shielding: Features 3-tier structural insulation (tooling-to-trolley, trolley-to-bridge, bridge-to-rail) maintaining an insulation resistance of $>10\text{ M}\Omega$ to eliminate current leakage paths.Anti-Magnetic Electrical Enclosures: PLCs, VFD inverters, and sensor cabinets are shielded with non-magnetic stainless steel or heavy mu-metal enclosures to prevent magnetic saturation of solenoids and transformers.Non-Magnetic Tool Components: Key components close to the bath utilize non-magnetic stainless steel or specialized alloys to prevent magnetic attraction and thermal warping.

How does the integrated vacuum tapping system ensure safe and precise extraction of molten aluminum?

Extracting liquid aluminum requires extreme thermal protection and weight tracking: Heavy Vacuum Ladle Handling: The auxiliary hoist uses heat-resistant wire ropes and thermal radiation shields to lower the vacuum tapping tube into the liquid aluminum bath. Dynamic Load Cell Weighing: High-accuracy thermal-insulated load cells continuously measure the weight of extracted aluminum in real-time, communicating directly with the plant’s MES for precise batch tracking. Emergency Fall-Safe Brakes: Redundant secondary mechanical brakes on the tapping hoist prevent any accidental drop of liquid metal during travel.

What smart automation features ensure precise alignment with reduction cells in high-temperature, dusty environments?

Poor visibility caused by heat haze and fluorides is overcome by intelligent sensor fusion:Laser & RFID Pot Auto-Positioning: Overhead laser sensors and cell-side RFID tags automatically align the crane trolley over designated pot centerline coordinates within $\pm3\text{mm}$ accuracy.Interlocked Tool Automation: Automated PLC logic prevents the crust breaker or anode clamp from lowering unless the trolley is locked securely in position, preventing accidental contact with delicate cell cathodes or side walls.Closed-Loop VFD Anti-Sway: Variable frequency drives eliminate pendulum swinging during high-speed travel, ensuring smooth tool entry into narrow pot openings.

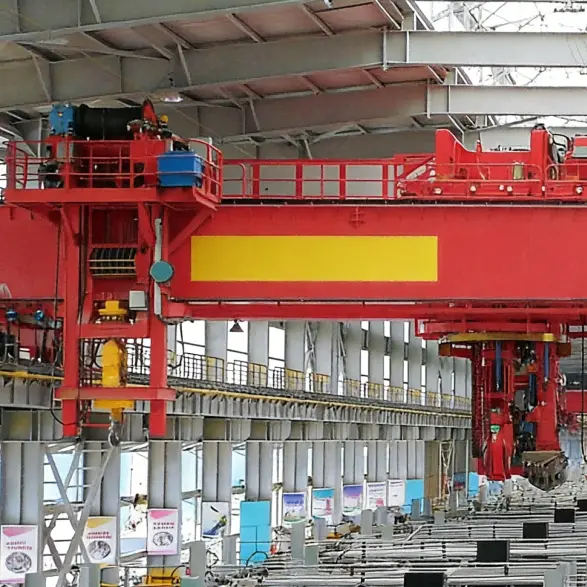

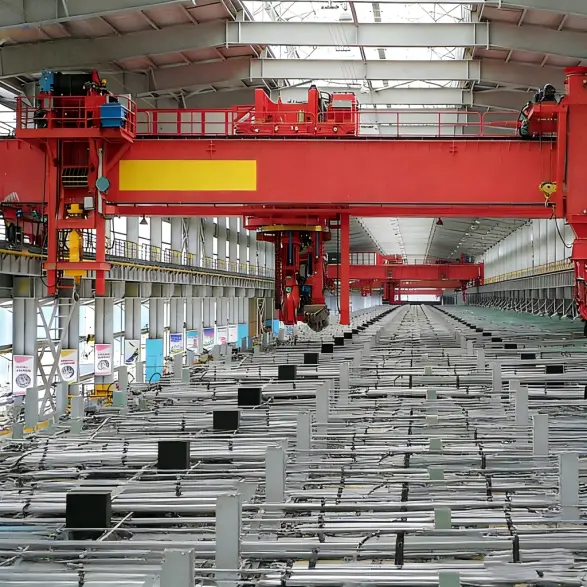

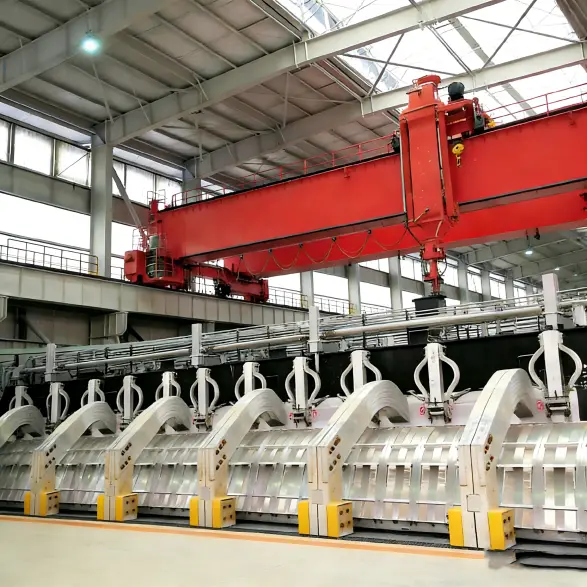

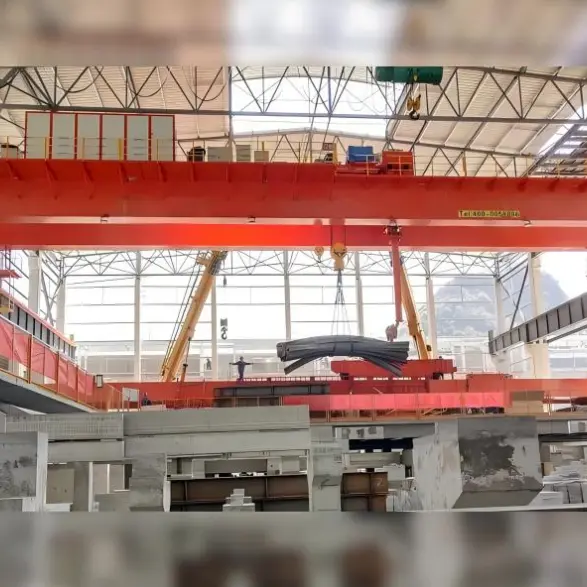

Electrolytic Aluminum Multi Function Crane

Authentication mark:

Capacity:(customizable)

Lifting Height:25 m (customizable)

Voltage/Hertz:(customizable)

Brand Name: YUNTIAN

Place of Origin: Henan, China

Product manual

Get a Free Quote

Introduction

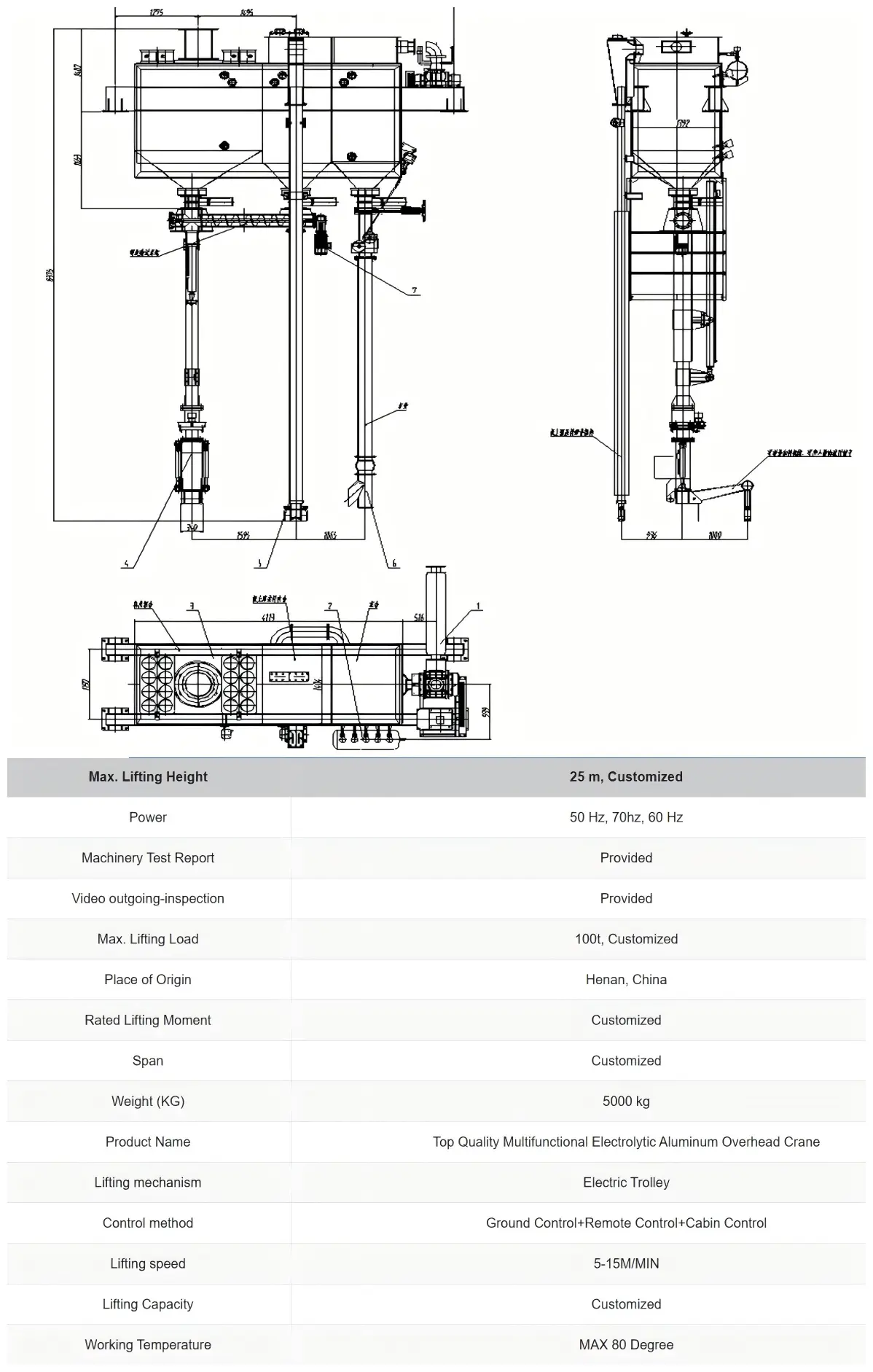

Technical Data (General Version)

Application

Features

PRODUCT INTRODUCTION

The Electrolytic Aluminum Multi Function Crane is a special-purpose overhead crane specifically designed for aluminum electrolysis potrooms. It integrates multiple operation functions including anode changing, crust breaking, feeding, tapping, and pot maintenance into one unit. Equipped with an intelligent control system, this crane significantly improves operational efficiency and safety in aluminum smelting production lines while reducing manual labor intensity. It is a key piece of equipment for achieving automated and continuous production in modern aluminum smelters.

TECHNICAL DATA

HOT PRODUCTS

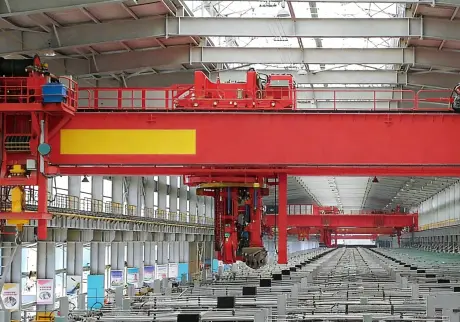

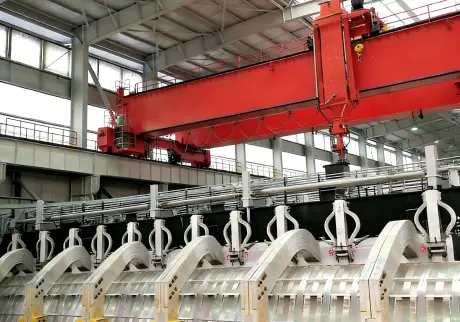

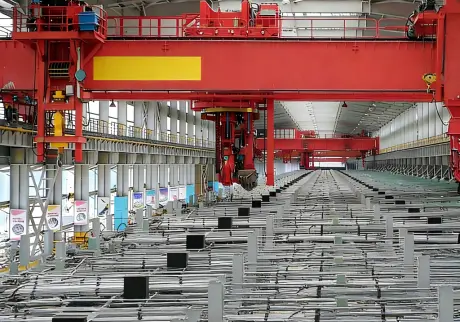

Primary aluminum smelting industry

Aluminum pot relining and maintenance workshops

Non-ferrous metal smelting and casting plants

Secondary aluminum processing and recycling lines

Large-scale aluminum industrial enterprises and integrated aluminum-power projects

FEATURES

Anode Changing – Fast clamping and replacement of pre-baked anodes with precise positioning over the pot.

Crust Breaking – Pneumatic or hydraulic crust breaking device to break the electrolyte crust and maintain normal pot operation.

Feeding Operation – Quantitative addition of raw materials such as alumina and cryolite into the electrolytic cell.

Tapping (Molten Aluminum Extraction) – Equipped with a weighing system (load cells) to extract liquid aluminum using vacuum ladles or submersible pumps.

Pot Maintenance – Supports slag skimming, busbar raising, anode-cathode distance adjustment, and other auxiliary tasks.

Intelligent Control – Features variable frequency drive (VFD) control, overload monitoring, anti-sway control, and remote diagnostic system.
